COMMERCIAL AWNING WINDOW - SERIES 456

elevate logo

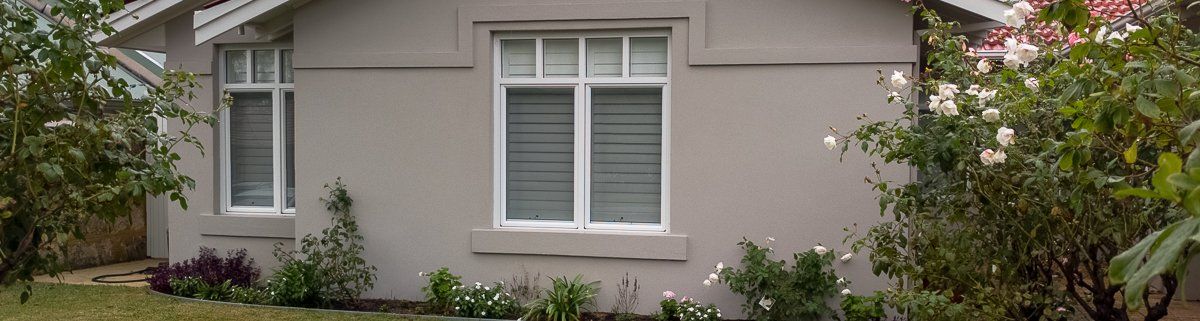

commercial awning window

Key features

    • Residential awning sashes inlaid directly into commercial framing

    • Dedicated head and sill to accept awning sashes with manual chain winders with standard 30mm left or alternative 44mm nailing fin jambs
    • 44mm nailing fin frame for those projects with double glazed fixed lights
    • Complies with AS2047, with a high water resistance of 450 Pa with a very low air infiltration that makes this product suitable for air-conditioned buildings
    • Awning sashes can be fitted with concealed electric chain winder, manual chain winder or cam handles
    • Fly screens can be fitted behind awning sashes with winders
    • Fixed lowlights can be glazed from the inside in elevated situations by reversing the removable glazing beads
    • Nailing fin frame makes the product suitable for cavity brick and brick veneer construction
    • Dedicated 90° and 135° corner mullions available
    commercial awning diagram
    series 456 sash

    456 Commercial Awning Window

    Our high-quality Series 456 commercial awning window comes standard with integrated sub-sill and a heavy-duty sash option.

    series 456 sash options

    456 Commercial Awning Window

    The sashes hang on built-in hook hinges with a standard single glazed wraparound sash version.

    series 456 jamb narrow

    456 Commercial Awning Window

    The standard 30mm jamb with built-in nailing fin/weather bar fits well into cavity brick wall installations and many other applications.

    series 456 jamb wide

    456 Commercial Awning Window

    There is an alternative bold 44mm wide jamb with built-in nailing fin/weather bar and both 30mm standard and 44mm wide nailing fin frames will accept height adjustable galvanised building-in lugs.


    Specifications of the commercial awning window

    GENERAL

    NB: Maximum panel height and width of awning sashes are interdependent.

    Max Panel Height*

    A/ @2400w = 800H

    C/ 1200mm

    ------------------------------

    Max Panel Width*

    A/ @2100h = 900w

    C/ 600mm

    ------------------------------

    Max Glass Thickness

    20mm

    ------------------------------

    Frame Depth

    102mm

    ENERGY

    UW Range

    4.0-6.8

    ------------------------------

    SHGC Range

    0.27-0.61

    WEATHER

    Maximum Water

    450Pa

    ACOUSTICS

    This product has not been acoustics tested. AWS anticipates this product's acoustic performance will be in-line with Series 516.

    ------------------------------

    *Dimensions subject to individual site conditions.
    ratings logos

    Call us today on 08 9330 2033 to find out more about our commercial awning window
