COMMERCIAL HINGED DOOR - SERIES 50

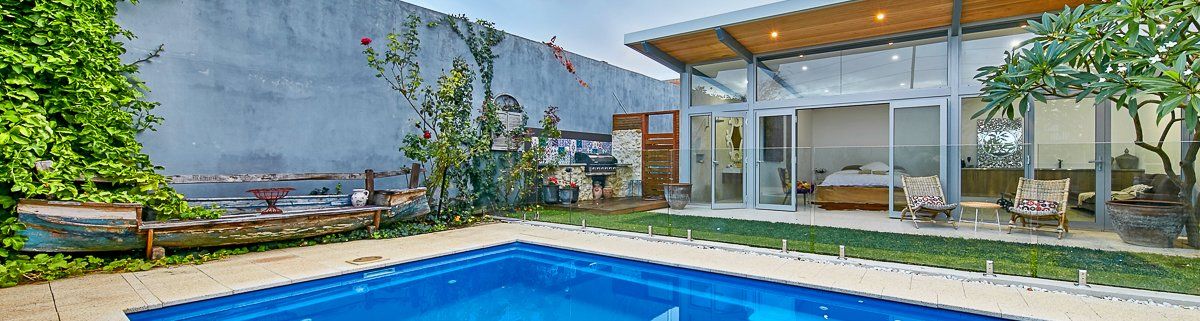

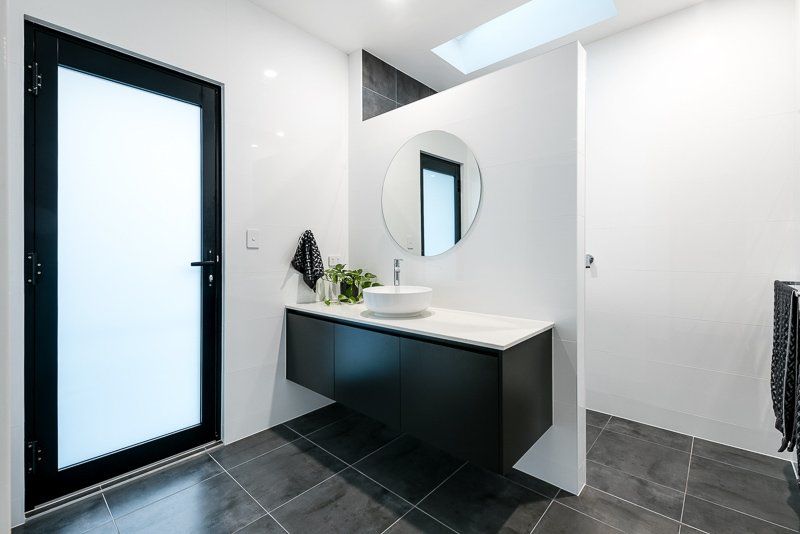

Room with one of our commercial doors in Perth

Overview

Our Series 50 Commercial Hinged doors are compatible with the full range of AWS Commercial framing. Designed around a 50mm platform, these doors are significantly stronger than standard 44mm commercial hinged doors.

Key Features

    • Series 50 Hinged doors with 50mm thick stiles are significantly stronger than industry standard 44mm thick doors.
    • 50mm thick doors are ideal for over height doors as they comply.
    • Series 50 Hinged doors have removable snap-on glazing beads on horizontals rails and wrap around stiles.
    • Stile to rail joint is securely fixed with custom spigot assembly.
    • Door glass can be blocked with custom stile glazing block and adjustable setting block.
    • Series 50 Hinged doors will accept glass up to 10.38mm thick.
    • 19mm High glazing beads ensure that the glass gets the right bite.
    • Can be security glazed with captive external glazing wedge.
    • Four mid rail options 50mm, 115mm, 125mm and 200mm deep.
    • Lock stile wide enough to accept most lock types.
    • Wide Stiles are available to suit wide back set locks.
    • Rebated French meeting stiles option available.
    series 50 panel
    • Maximum panel height -  3000mm
    • Maximum panel width -  1000mm
    • Maximum glass thickness -  10.38mm
    • WERS rated product
    • 3D and 2D CAD files for product
    • Specifier assistance available
    Subject to individual site conditions - Contact Nu-Look Technical Support for information.
    series 50 strngth hinge

    50 Commercial Hinged Door

    The series 50 hinged doors are 70% stronger than conventional 44mm aluminium doors.

    series 50 door stiles

    50 Commercial Hinged Door

    The dedicated rebated French door stiles provide highly enhanced weather performance.

    series 50 tracks

    50 Commercial Hinged Door

    A full range of tracks allows us to offer high-performance sliding doors.

    series 50 lock

    50 Commercial Hinged Door

    Can accept a wide variety of commercial locks and associated hardware.

    series 50 threshold

    50 Commercial Hinged Door

    With a diverse number of thresholds to suit different applications, there is something for every setting.

    series 50 interlock

    50 Commercial Hinged Door

    There is also an interlocking stile option for multiple sliding panel operations.

    Typical door configurations

    series 50 configurations

    WERS rated

    The table below lists some of the WERS rated glass and frame combinations for this system. For a complete list of all rated glass and frame combinations refer to the Series 50 WERS Data Sheet.

    Single Glazed

    series 50 chart
    wer logo

    Call us today on 08 9330 2033 to find out more about our commercial doors in Western Australia
