Designer Sliding and Stacking Door

SERIES 618 - COMMERCIAL SLIDING & STACKING DOORS
sliding / stacking doors

Stacker Doors in the Perth Area

Overview

The Series 618 Magnum™ Sliding door is a semi-commercial sliding door system designed for residential applications. Offering up to 4 sliding panels in each direction, the Series 618 MAGNUM™ can be used to span openings in excess of 6m.

Key Features

    • This door has been designed to complement the Designer Series range of high-performance windows and doors

    • The flat sill design allows the door frame to be recessed completely into the floor for the ultimate finish
    • The 33mm thick stiles are ideal for extra-large doors (up to 2700mm) in high wind load areas
    • We have successfully tested 2700mm x 4000mm ‘XXF’ and 2700mm x 3000mm ‘XF’ doors for compliance with the relevant Australian Standards. Achieving very high water resistance of 450Pa, allows these doors to be installed into most residential projects
    • Doors can be fabricated up to 4 sliding panels in each direction
    • 90° corner sliding option with no central meeting post
    • The optional external fly door system nests into the main frame
    • The custom screen door system is designed to complement the glass door
    • We can also fit the Centor S1 roller screen behind Series 618 sliding doors
    • Unused frame recesses are closed off with snap-in flat fillers for improved appearance and water resistance
    • Standard door rails and stiles will accept glass up to 10.38mm thick laminated or 20mm IGUs using the double glazing stiles and rails.
    • Heavy door panels are fitted with double bogey wheels for smooth long term operation
    • BAL40 Bushfire Compliance available on this product without the need for Bushfire Shutters
    • Region D Cyclone Rating including Impact Resistance available on this Product without the need for Cyclone Shutters
    The cross section of one of our sliding doors available in Perth
    • Maximum panel height -  3000mm
    • Maximum panel width - 2000mm
    • Maximum glass thickness -  20mm
    • WERS rated product
    • Enhanced acoustic performance
    • 3D and 2D CAD files for product
    PRODUCT SPEC SHEET
    logo acoustics wer

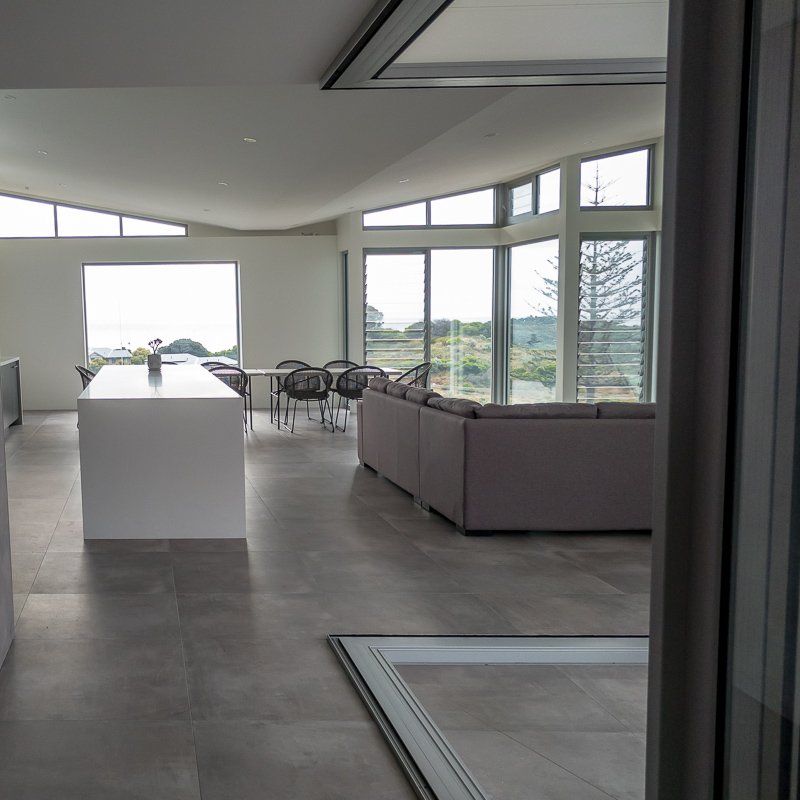

    series 618 corner

    618 Sliding & Stacking Door

    We offer our designer sliding door in many configurations, including the 90° corner opening and it is also available as a double glazed option for increased energy efficiency.

    series 618 flat sill

    618 Sliding & Stacking Door

    The completely flat sill design is a feature of this high-quality door range. It features a 4 track XXXF flat sill with a recessed sump on the outside and Centor S1 roller screen on the inside.

    series 541 rollers

    618 Sliding & Stacking Door

    Heavy doors require heavy-duty rollers. We fit double bogey wheels under heavy doors to ensure they slide smoothly for years to come.

    series 618 lock

    618 Sliding & Stacking Door

    We offer a minimalistic mortice lock for this door with bold ICON™ pull handles and matching rectangular cylinder escutcheons. On the heavy designer door versions, we recommend the sturdier ‘D’ pulls.


    Typical door configurations

    door configurations

    The table below lists some of the WERS rated glass and frame combinations for this system.

    msgnum chart
    wer logo

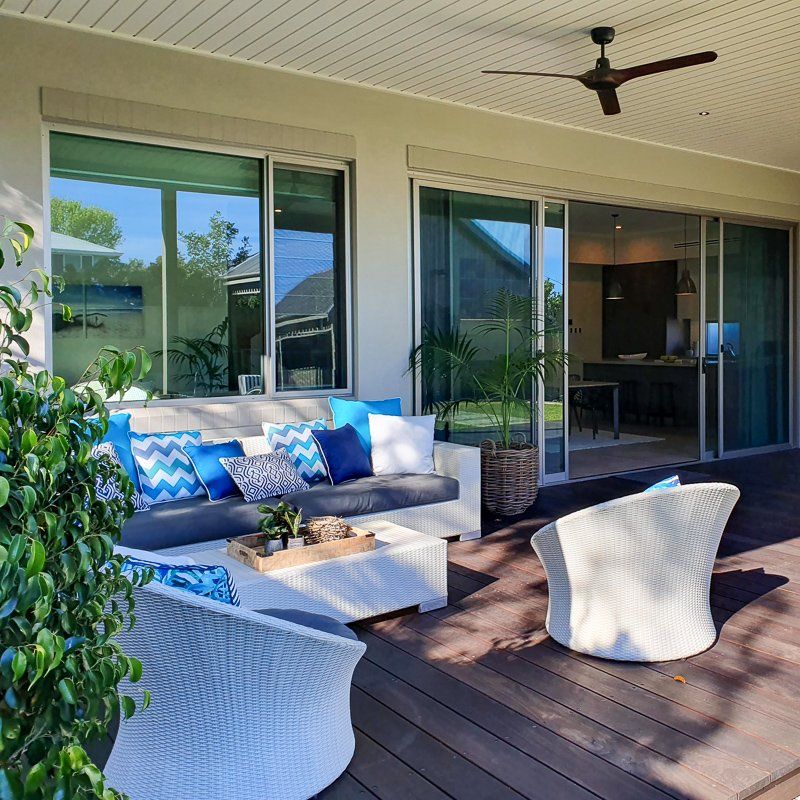

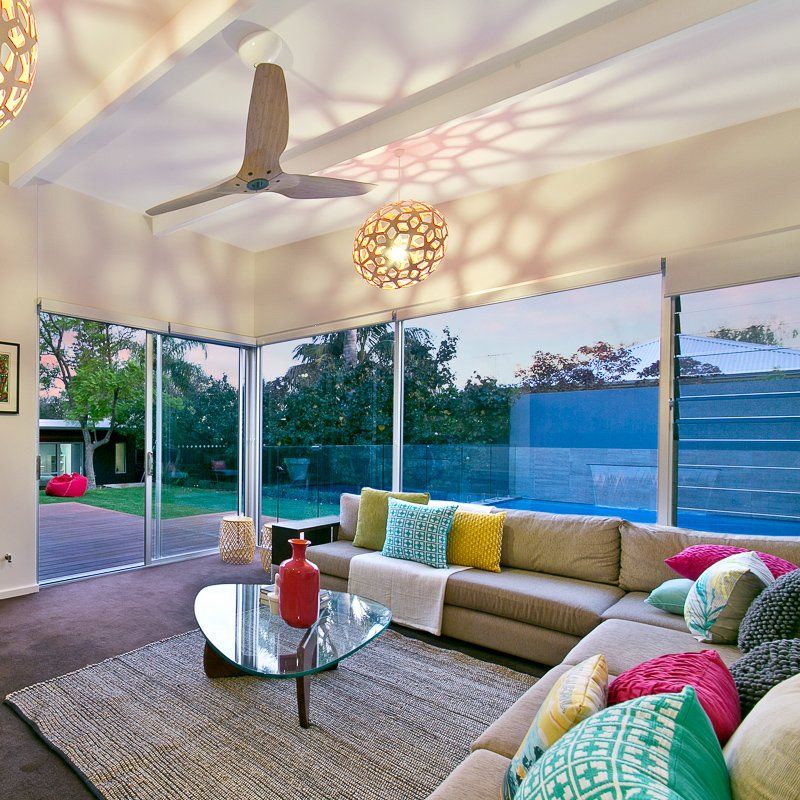

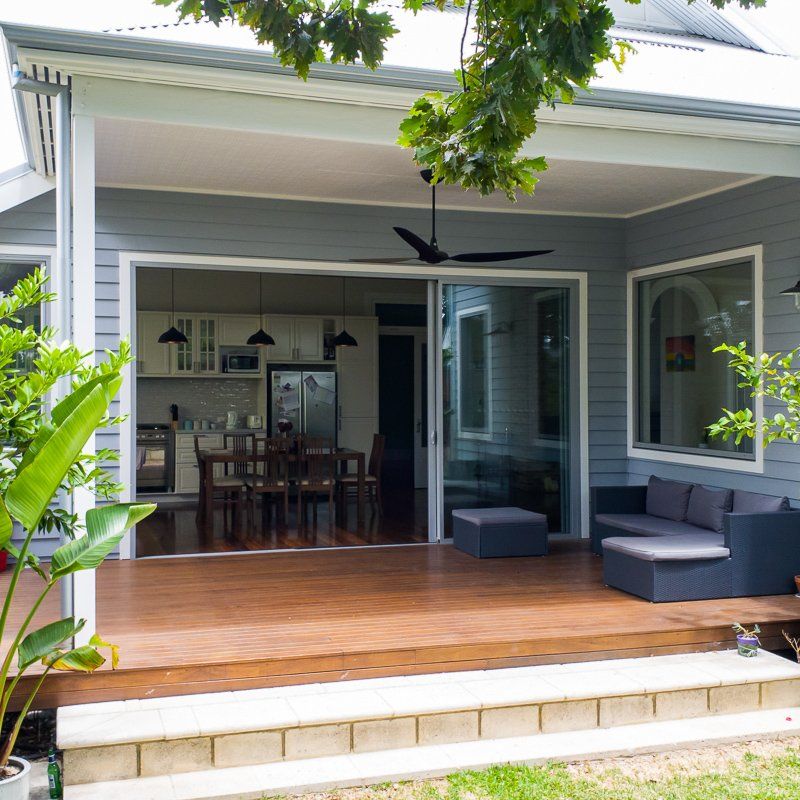

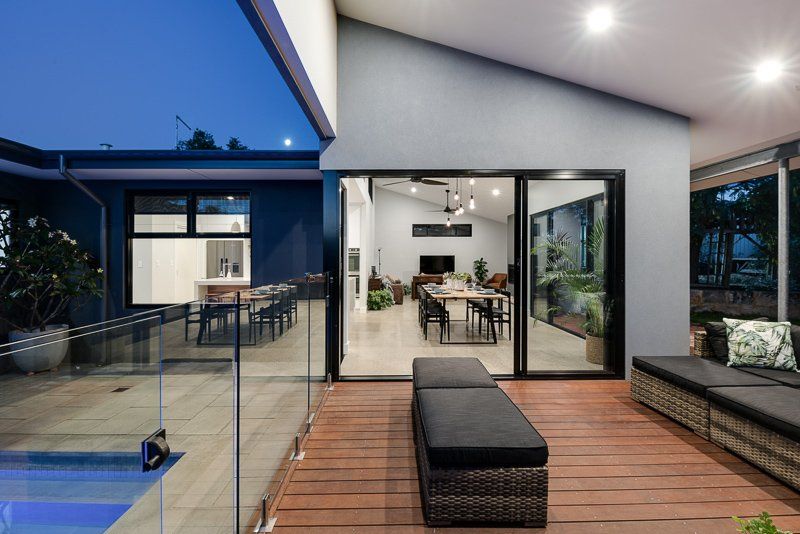

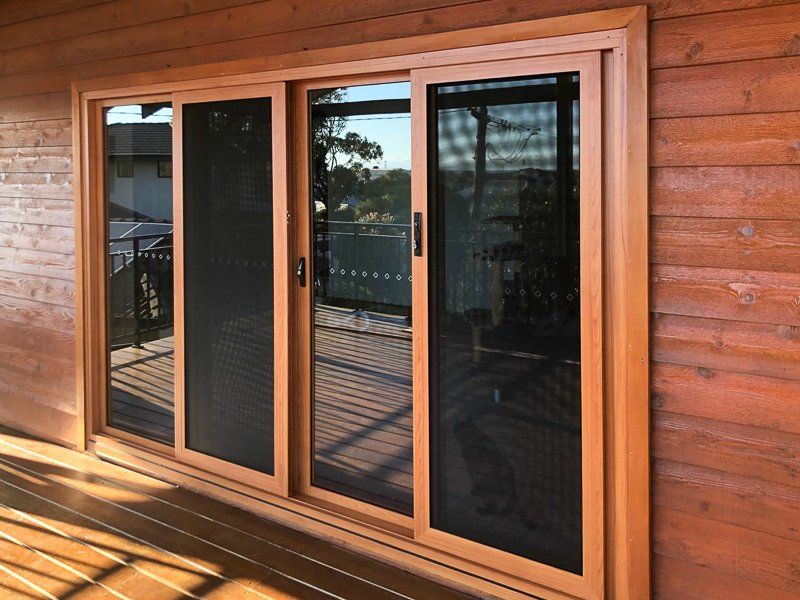

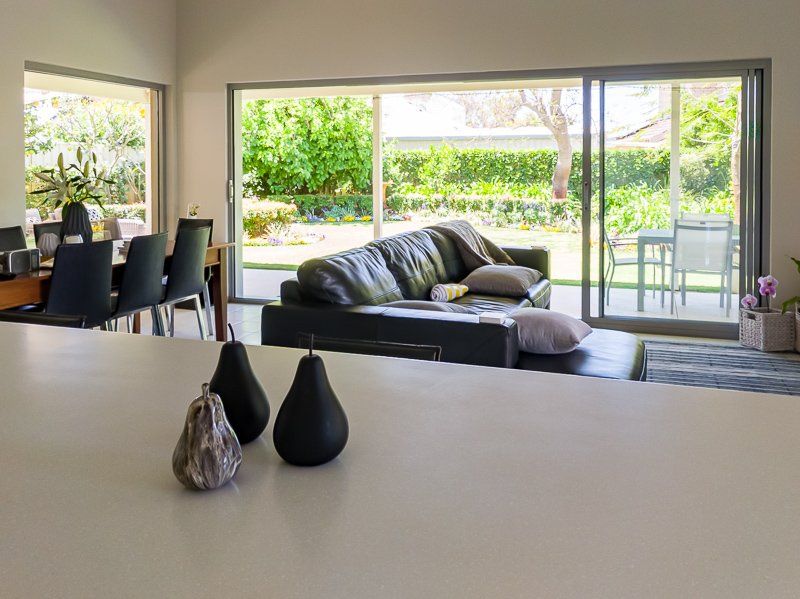

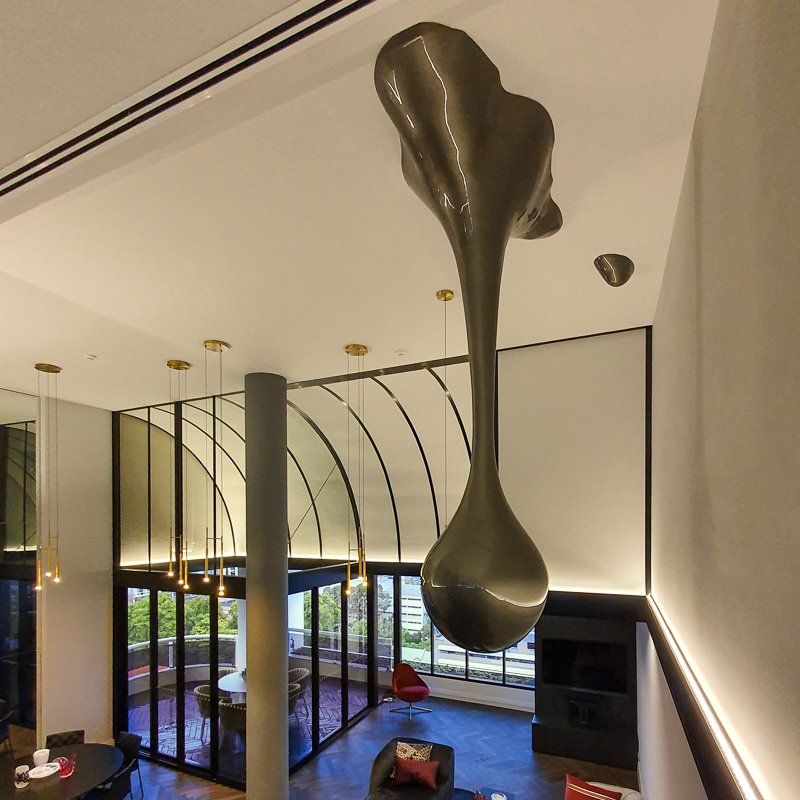

    Designer sliding and stacking door installations in Western Australia

    Call us today on 08 9330 2033 to find out more about our designer sliding and stacking door range in Western Australia
