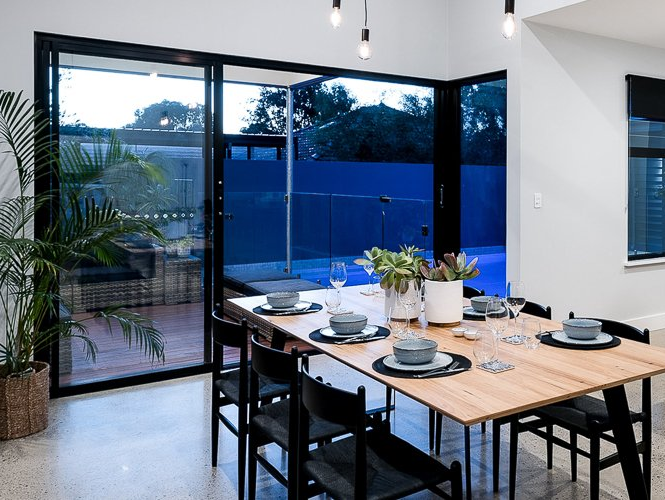

Residential Sliding Door

IMG_8338 copy
  • Great for Door Replacements
  • Wide range of colours available
  • Manufactured in Perth

Aluminum Sliding Doors Perth

vantage logo

When you want the best in home & commercial Aluminium Sliding Doors in Perth WA, call the expert team at Nu-Look Windows. As a 3rd generation Perth Family business, we are known for our superior quality sliding doors and windows. Our components are designed and manufactured in Australia to withstand the harsh Australlan environment. You will have peace of mind knowing your new sliding doors and windows will stand the test of time.

If you are renovating your home or business, ask about our efficient door & window replacement service. Our team of experienced inhouse sliding door and wind fitters will complete your job hassle free and on time. If you are extending or constructing a new house or business premises, simply send us your plans and we will provide a prompt detailed pricing proposal for your project. From one door or window, to a whole house or commercial building, Nu-Look Window in Perth WA will exceed your expectations for service and quality.

  • 102mm wide frame residential sliding door with two heavy-duty (tubular) sill options, one for standard water performance (150Pa) and a tall sump type sill for high water performance (300Pa)
  • Low line nursing home sill option is also available
  • Fly doors slide on the outside and run on large diameter wheels matched to the track for silent running
    • Fixed panel external meeting stile has built-in interlock to accept the fly door interlock featuring no unsightly rivets
    • The glass door and fly door rolling tracks are protected from accidental damage by the splayed threshold
    • XF Panels can be re-handed on-site (direction reversed)
    • Full range of door to window couplers allows this door to be joined to any Vantage Residential Series window
    • Double weather pile sealed door panels for maximum air and water exclusion
    • Sill drain holes are covered with hinge flap to reduce air and insect infiltration
    The inner workings of our sliding doors in Perth
    series 541 glazing

    541 Residential Sliding Door

    A key feature of the 541 is the clean fly door installation. The screens have a snap-on interlock that nests into the interlock on the glass door. It also comes with an optional stile closer.

    series 541 rollers

    541 Residential Sliding Door

    Vantage wheels have been designed to fit snugly into the door bottom rail. Nothing slides as smoothly as a Vantage sliding door. Double bogey wheels are used on heavy doors.

    series 541 lock

    541 Residential Sliding Door

    The ANDO™ optional 2-point door lock is designed for maximum security with 316 stainless steel locking tongues. The outer pull handles are sturdily made from corrosion resistant and powder coated stainless steel (304).

    series 541 sill

    541 Residential Sliding Door

    If required, standard, high performance and nursing home sill options are also available.


    Specifications of aluminum sliding doors in Perth WA

    GENERAL

    Max Panel Height*

    2350mm

    ------------------------------

    Max Panel Width*

    1200mm

    ------------------------------

    Max Glass Thickness

    16mm

    ------------------------------

    Frame Depth

    102mm

    ENERGY

    UW Range

    3.0-6.2

    ------------------------------

    SHGC Range

    0.28-0.72

    WEATHER

    Maximum water

    300 Pa. Sub-sill

    ACOUSTICS

    6.38mm Lam

    32 (-1; 2)

    ------------------------------

    10.38mm Lam

    35 (-2;-3)

    ------------------------------

    7.52mm Lam

    32 (0;-1)

    ------------------------------

    5mm tgh/9mm/5mm tgh

    33 (-1;-3)

    *Dimensions subject to individual site conditions.
    logos

    Call us today on 08 9330 2033 to find out more about our residential sliding door range in Western Australia
